36-180mm Long Wavelength Infrared Lens | GU OPTICS
Home Products GA Infrared Lenses 680207

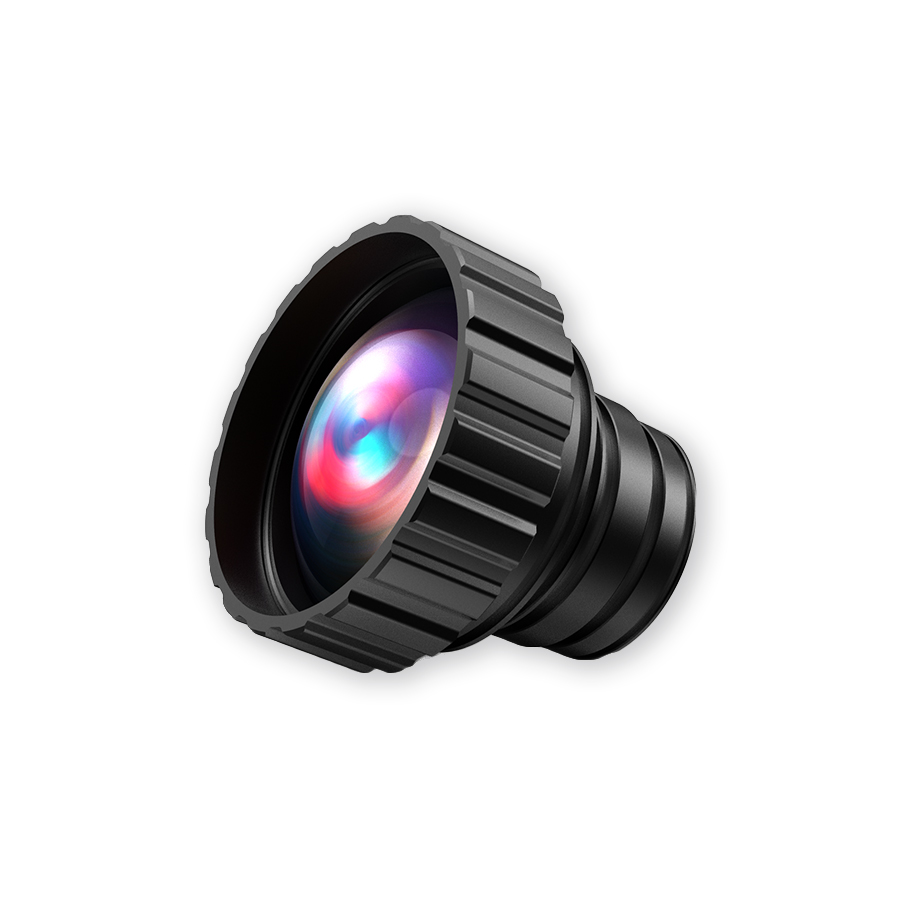

36-180mm Long Wavelength Infrared Lens

36-180mm Long Wavelength Infrared Lens

Price Option Please Consult

Product No. 680207

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Focal Length 36-180mm
Resolution 640×512
Pixel Size 17μm
F/# 1.2
FOV 3.5°×2.8°
Working Wavelength 8~12μm
Working Distance 2m~∞
Weight <5.5kg
NO Item Specification
1 EFL 36-180mm
2 Sensor 640x512    17μm
3 FNo 1.2
4 FOV
(HxV)
Min FOV 3.5° x2.8°
Max FOV 17.4° x13.9°
5 Wavelength 8-12μm
6 Transmittance
7 Front Lens Coating HD
8 Focus  Motorized
9 Zoom Motorized
10  Focus distance 2m~∞
11  Athermalizing Optical non-thermal
12 Sealing
13  Temperature -40~80°C
14 Weight <5.5kg
15 Appearance Grade 60-40
The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
