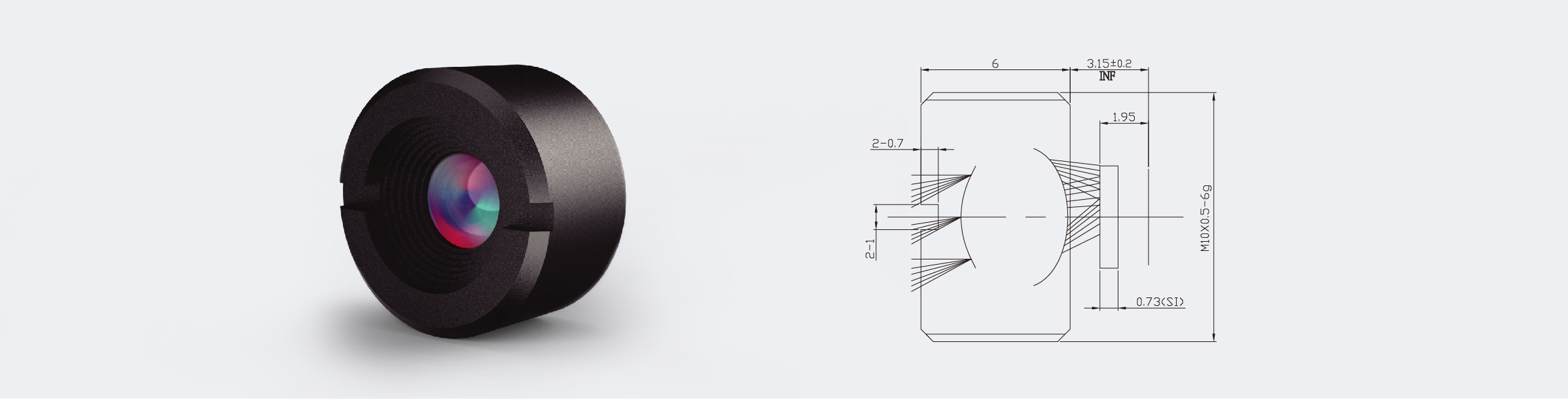

3.7mm Long Wavelength Infrared Lens





Share

WeChat

Scan and add Wechat

3.7mm Long Wavelength Infrared Lens

Price Option Please Consult

Product No. 680204

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 3.7mm

Resolution 256×192

Pixel Size 12μm

F/# 1.1

FOV 45.6°×34.4°

Working Wavelength 8～12μm

Working Distance 0.1m～∞

Weight ＜5g

NO	Item	Specification
1	EFL	3.7mm
2	Sensor	256x192 12μm
3	FNo	1.1
4	FOV (HxV)	45.6°x34.4°
5	Wavelength	8-12μm
6	Transmittance	>88%
7	Front Lens Coating	HD
8	Focus	Fixed
9	Focus distance	0.1m~∞
10	Athermalizing	Optical athermalization
11	Sealing
12	Operation Temperature	-40~80°C
13	Weight	<5g
14	Appearance Grade	60-40

Curve Download

13mm Long Wavelength Infrared Lens

19mm Long Wavelength Infrared Lens

50mm Long Wavelength Infrared Lens

35mm Long Wavelength Infrared Lens

The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
