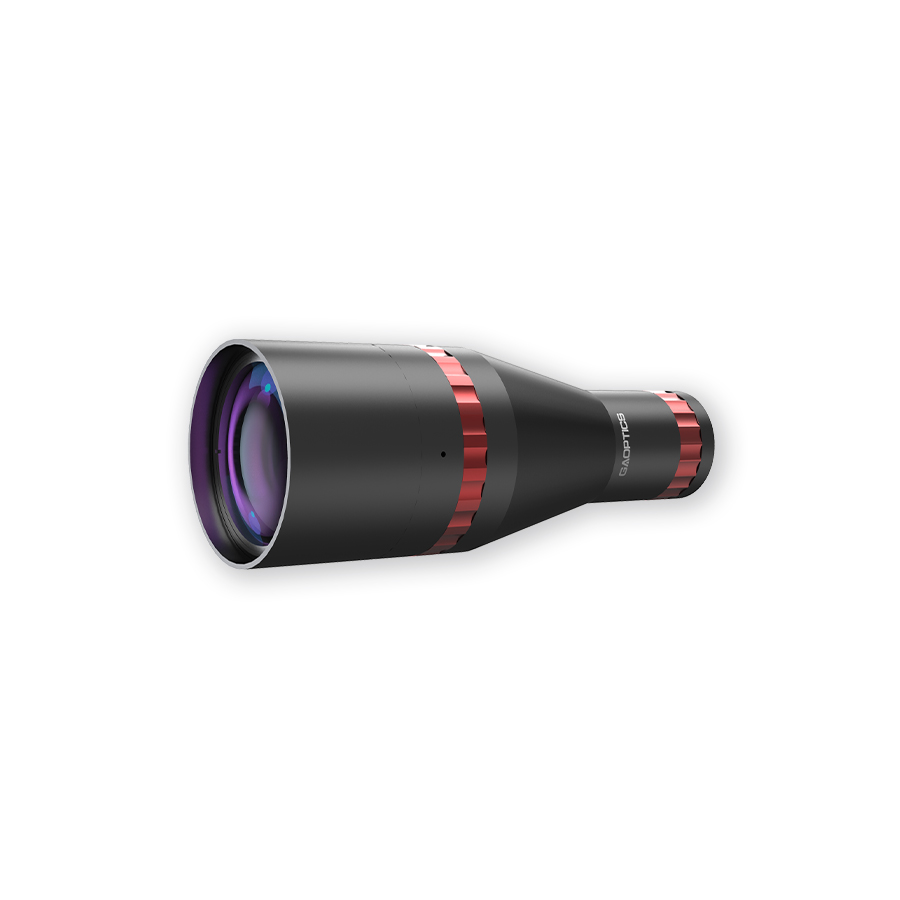

200mm 1" 900-1700nm Telephoto SWIR Lens
Share
WeChat
Scan and add Wechat

New 200mm 1" 900-1700nm Telephoto SWIR Lens

Price Option
 € 6414.18 (EUR) ￡5574.23 (GBP) ￥37800.00 (RMB)

Product No. 680011

Stock Please Consult

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Max. sensor size 1"(16mm)
Focal Length 200mm
Mount C-Mount
F/# F4-22
Working Distance 10m~∞
FOV 4.57°×3.66°×2.75°
Distrotion 0.3%@y=8mm
Filter thread M60×0.5mm

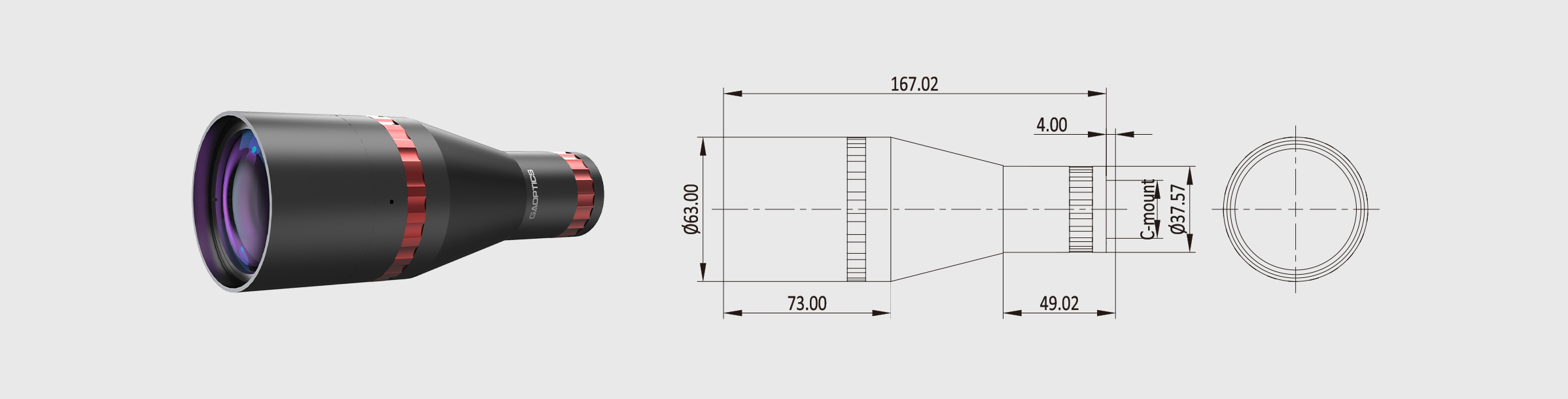

Lens Size(W x L) 63×170mm
Weight 650g
Work Temperature -10℃～+50℃
Working Wavelength 900-1700nm
Distance of entrance pupil 0mm
Diameter of entrance pupil 50mm
Distance of exit pupil -1475mm
Diameter of exit pupil 36.8mm
Total optical length 180mm
  No. Item Specifications
1 Max. sensor size 1"(16mm)
2 Focal Length 200mm
3 Mount C-Mount
4 F/# F4-F22
5 Working Distance 10m~∞
6 FOV
(Diagonal x H xV)		 1" 4.57°×3.66°×2.75°
2/3'' 3.06°×2.43°× 1.83°
1/2" 2.29°×1.83°× 1.37°
7 Object Size
(at the minimum focus distance)		 1" 800×640×480mm
2/3'' 535×425×320mm
1/2" 400×320×240mm
8 BFL(in air) 48.7mm
9 Operation Focus Manual
Aperture Manual
10
Distortion		 1"  0.3%@y=8mm
2/3''  0.1%@y=5.3mm
1/2"  0.05%@y=4mm
11 Filter thread M60×0.5mm
12 Lens Size(W x L) 63×170mm
13 Weight 650g
14 Work Temperature -10℃～+50℃
15 Work Wavelength 900-1700nm
16 Distance of entrance pupil 0mm
17 Diameter of entrance pupil 50mm
18 Distance of exit pupil -1475mm
19 Diameter of exit pupil 36.8mm
20 Total optical length 180mm

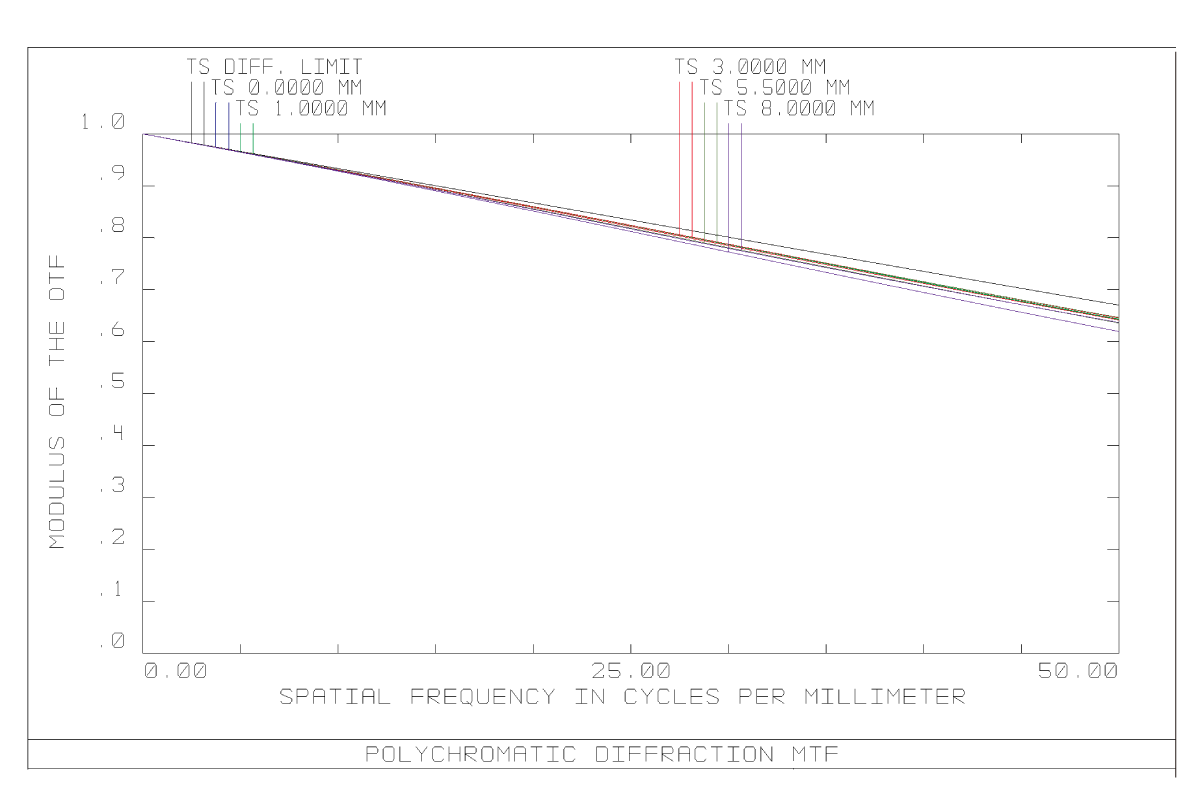

Curve Download
Long Focal Length SWIR Lens has a long focal length, designed for applications in the short-wave infrared spectra, ranging from 900-1700nm. In the field of industrial lenses, ordinary fixed-focus lenses are basically 8-75mm, and those with focal length greater than 75mm can be called telephoto lens. This series of products not only covers the short-wave near-infrared band, but also has the characteristics of long-focus, suitable for outdoor monitoring, security, military and other fields.
