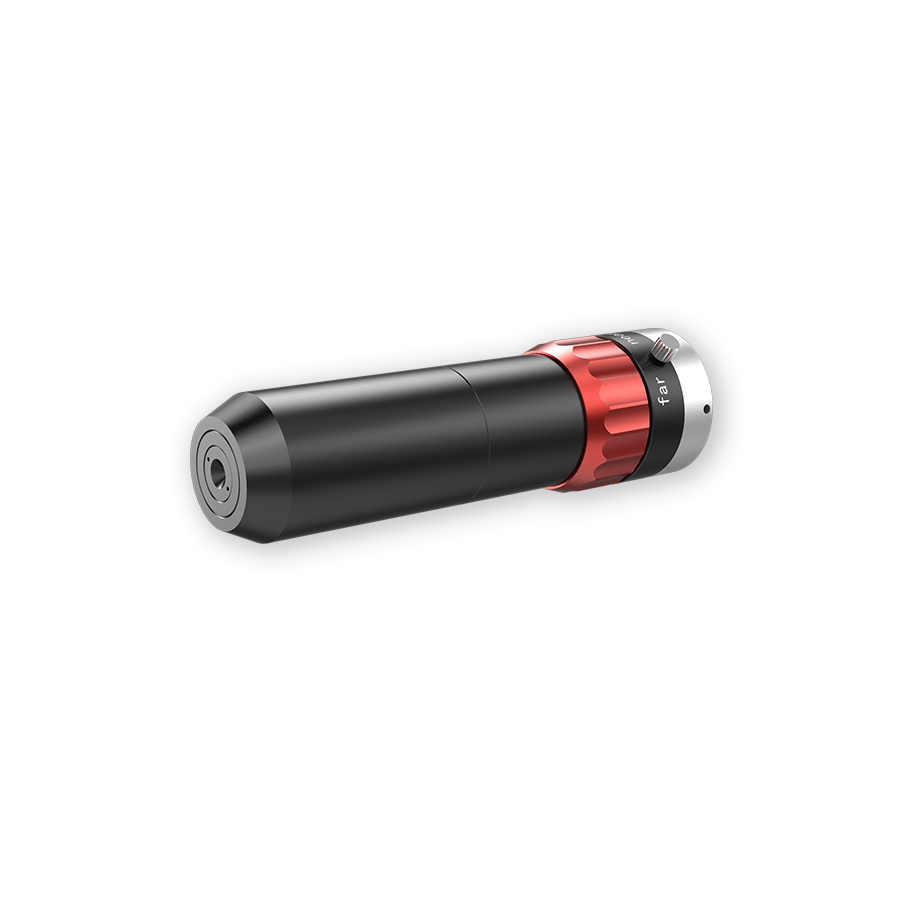

2/3" 360° Hole Inspection Lenses

Price Option Please Consult

Product No. 611001

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

CCD 2/3

Mount C

F/# 8.3

Working Distance 4mm~71mm

Max. Sensor Size Φ6.6mm

Working Wavelength 450-650nm

FOV(Min) 10×6mm

FOV(Max) 120×120mm

Weight /

No.	Item		Specifications
1	Max. sensor size		2/3"
2	Mount		C-Mount
3	F/#		8.3
4	Working Distance		4mm~71mm
5	Image Circle		Φ6.6mm
6	Working Wavelength		450-650nm
7	Distance of entrance pupil		/
8	Distance of exit pupil		/
9	Object Focus Position		/
10	CTF@50lp/mm		/
11	FOV		Dia(mm)	H(mm)		WD(mm)	r (%)
			10	6		4	22.4
			15	8.5		7	22,8
			20	13		10	26.8
			25	18		13.5	25.5
			30	22		16	26.2
			40	31		22.5	27
			50	40		28.5	27.7
			60	50		34.5	28.2
			70	60		40.5	28.8
			80	75		46.5	30
			100	97		59.5	30.5
			120	120		71	31
12	Magnification		工作距离(mm)		放大倍率
			82		/
			73		/
			66		/
			56		/
			48		/
			37		/
			32		/
			23		/
13	Operation	Focus	Manual
		Aperture	M-Iris
14	Lens Size(W x L)		32.4×115.1mm
15	Weight		/
