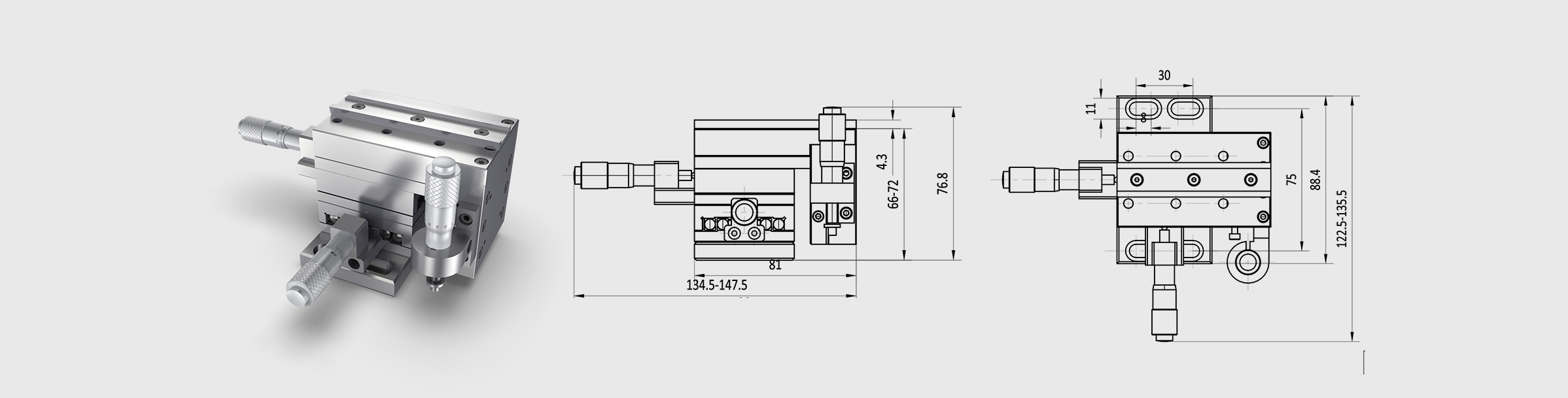

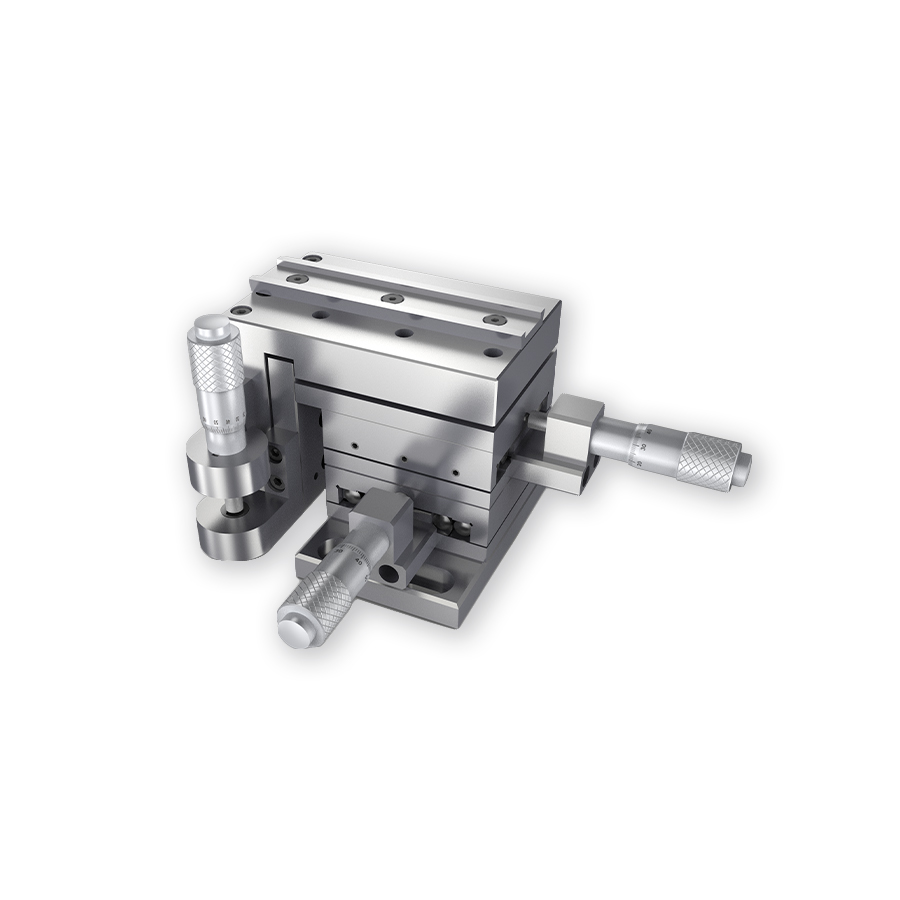

光纤专用位移台 3轴左手型

Price Option

Product No. 519454

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

调整轴数 3轴（x、y、z）

行程 Tx:13mm;Ty:13mm;Tz:6mm

灵敏度 <1μm

直线度 X、Y、Z<3μm

说明进口交叉滚柱导轨

主体材料 304不锈钢

光纤专用位移台 1轴

光纤专用位移台 2轴

光纤专用位移台 2轴左手型

光纤专用位移台 3轴

联合光科技凭借多年精密位移技术积累，推出了FST系列手动光纤专用位移台和手动光波导调芯系统。该系列产品主体材料采用304不锈钢，导轨为进口超高精密交叉滚柱导轨，保证了运动的平直度，配合我司精密磨削技术，使该系列产品具有超高精度和可小于1μm的灵敏度，并且运行平顺、无跳动现象。全系列产品均采用分厘卡驱动，特别适合于超高精度的手动调整领域，尤其是光纤耦合或光波导器件的精密调整。全系列产品，配合我司光纤专用附件产品，可提供3~6维的整体式调整方案。
