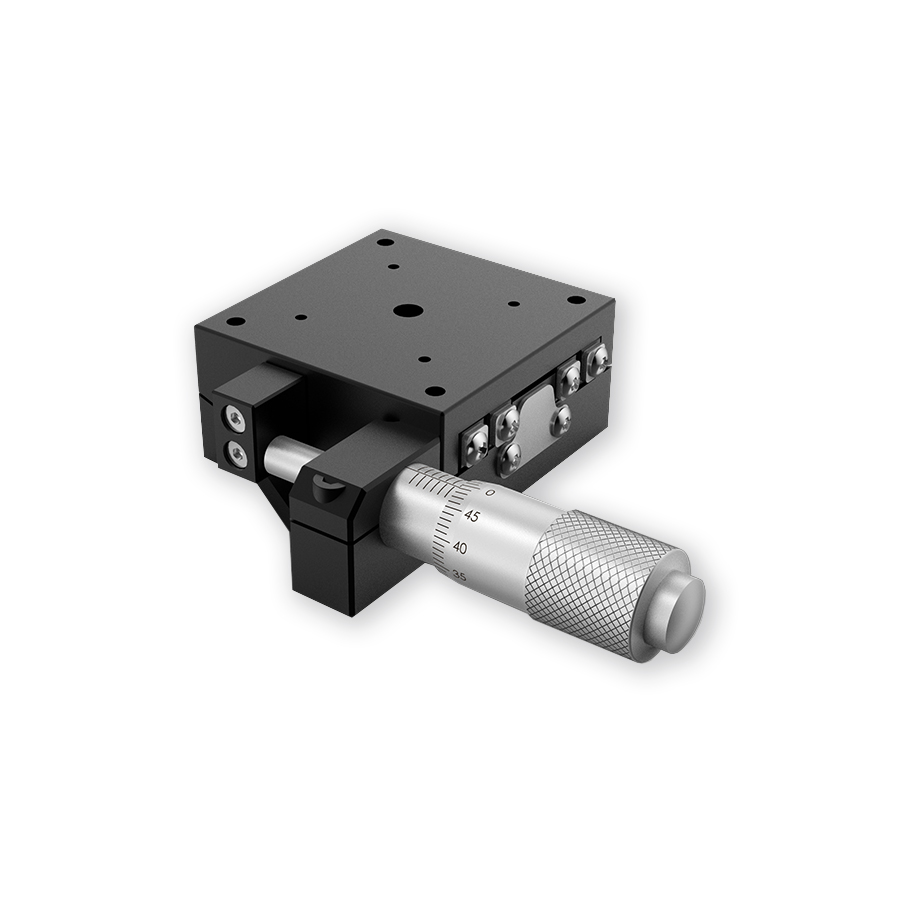

40x40mm Single-axis Adjustment±7°





Share

WeChat

Scan and add Wechat

40x40mm Single-axis Adjustment±7°

Price Option

Product No. 518550

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

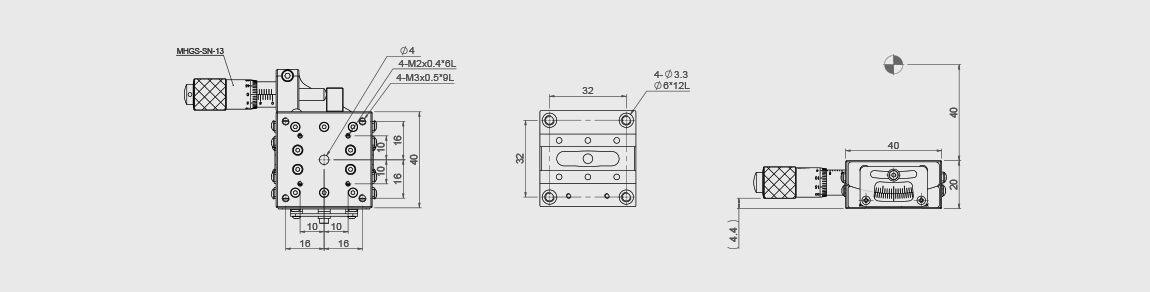

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Platform Size 40x40mm

Travel ±7°

Distance to Point of Rotation from Top Surface 40mm

Min Micrometer Graduations 40″

Minimum Scale 0.1°

Load Capacity 3kgf

Weight 0.15kg

40x40mm Single-axis Adjustment±4°

40x40mm Single-axis Adjustment±4°

60x60mm Single-axis Adjustment±4°

60x60mm Single-axis Adjustment±3°

α- Axis Precision Goniometer Stages Single-axis (α) Dual Axis: α&β Stage Size (mm): 40mm, 60mm Travel : ±30~±70 Guide System: V-Grooved Type of Drive: Micrometer Material : Aluminum alloy
