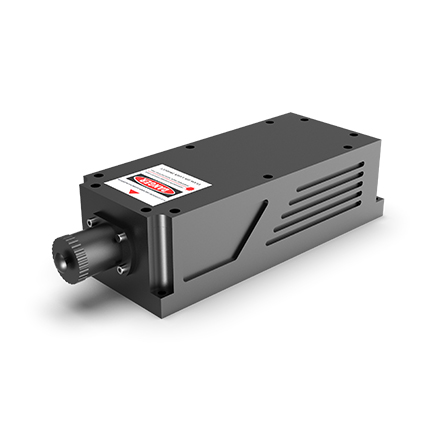

GREEN DIODE LASER 520nm 1~800mW

Price Option Please Consult

Product No. 470025

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Wavelength 520±10nm

Power 1~800mW

Operating Mode CW

Horizontalr ＞1, 100, 200, …, 800nW

Power Stability (rms,over 4 hours) ＜1%, ＜2%, ＜3% (＜0.5%, optional)

Transverse Mode Multimode

Beam diameter at the aperture (1/e²,mm) ~1.0×3.0

Beam Divergence, full angle ＜4.0×0.5 mrad

Polarization Ratio /

Warm-up Time ＜5min

Beam Height From Base Plate 24.8mm

Operating Temperatur 10-35℃

GREEN DIODE LASER 520nm 1~50mW

LD PUMPED ALL-SOLID-STATE GREEN LASER 561nm 1~500mW

LD PUMPED ALL-SOLID-STATE GREEN LASER 561nm 500~1000mW

RED DIODE LASER 633nm 1~80mW

Central wavelength (nm)		520±10
Operating mode		CW
Horizontalr (mW)		>1, 100, 200, …, 800
Power stability (rms, over 4 hours)		<1%, <2%, <3% (<0.5%, optional)
Transverse mode		Multimode
Beam diameter at the aperture ((1/e2,mm)		~1.0×3.0
Beam divergence, full angle (mrad)		<4.0×0.5
Warm-up Time (minutes)		<5
Beam height from base plate (mm)		24.8
Operating temperature (℃)		10~35
Power supply	85-264VAC	4700P1 / 4700P2 (Frequency for 1Hz-30kHz)
	100-240VAC	4700P4 (Frequency for 30kHz -100kHz)
TTL / Analog modulation		，10KHz-30KHz 30kHz-100kHz
Expected lifetime (hours)		10000
Warranty		1 year
