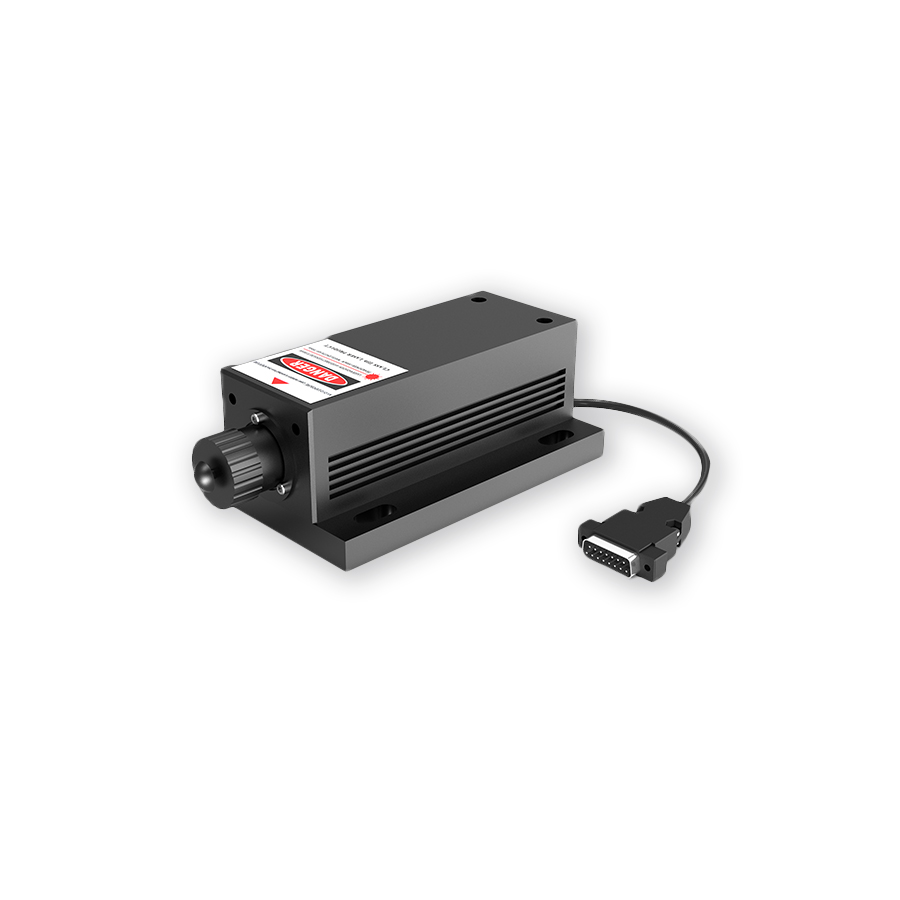

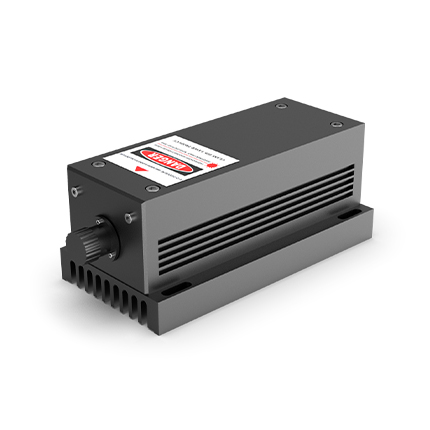

BLUE DIODE LASER 460nm 500~800mW

Price Option Please Consult

Product No. 470020-2

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Wavelength 460±5nm

Power 500~800mW

Operating Mode CW

Horizontalr ＞500,600,…,800nW

Power Stability (rms,over 4 hours) ＜1%, ＜2%, ＜3% (＜0.5%, optional)

Transverse Mode Multimode

Beam diameter at the aperture (1/e²,mm) ＜2×5

Beam Divergence, full angle ＜2.5×0.2 mrad

Polarization Ratio /

Warm-up Time ＜5min

Beam Height From Base Plate 24.8mm

Operating Temperatur 10-35℃

BLUE DIODE LASER 460nm 1~80mW

BLUE DIODE LASER 488nm 1~50mW

GREEN DIODE LASER 510nm 1~30mW

LD PUMPED ALL-SOLID-STATE GREEN LASER 515nm 1~100mW

		470020-1	470020-2
Central wavelength (nm)		460±5
Operating mode		CW
Horizontalr (mW)		>90,100,…,500	>500,600,…,800
Power stability (rms, over 4 hours)		<1%, <2%, <3% (<0.5%, optional)
Transverse mode		Multimode
Beam diameter at the aperture ((1/e2,mm)		<2.5×5.2	<2×5
Beam divergence, full angle (mrad)		<2.1×1.6	<2.5×0.2
Warm-up Time (minutes)		<5
Beam height from base plate (mm)		24.8
Operating temperature (℃)		10~35
Power supply	85-264VAC	4700P1 / 4700P2 (Frequency for 1Hz-30kHz)
	100-240VAC	4700P4 (Frequency for 30kHz -100kHz)
TTL / Analog modulation		，10KHz-30KHz 30kHz-100kHz
Expected lifetime (hours)		10000
Warranty		1 year
