Home  Products  Zerodur Broadband Metal Laser Mirrors  432006

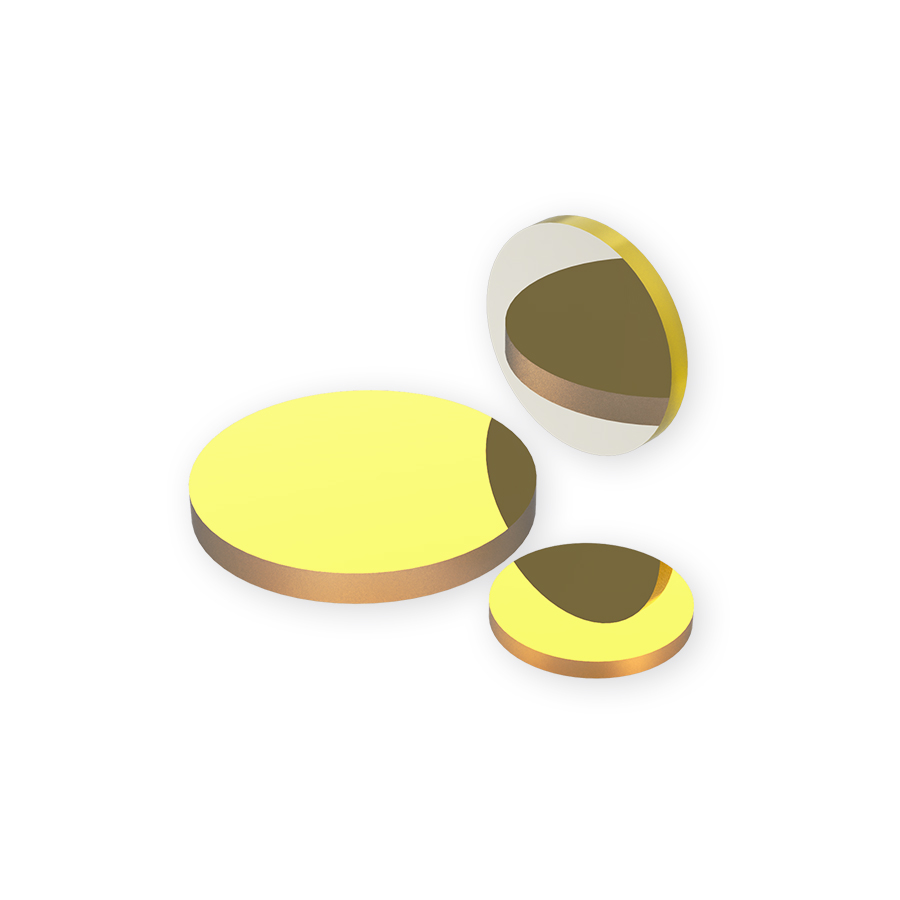

Zerodur Broadband Metal Laser Mirrors D=25.4mm 0-45° 460-700nm



Zerodur Broadband Metal Laser Mirrors D=25.4mm 0-45° 460-700nm





Share

WeChat

Scan and add Wechat

Zerodur Broadband Metal Laser Mirrors D=25.4mm 0-45° 460-700nm

Price Option

Product No. 432006

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 25.4mm

Thickness 6.0mm

Coating HR@(460-700nm)

Reflectivity Ravg＞93%,Rmin＞90%

Angle of Incidence 0-45°

Material Zerodur

Irregularity(P-V) λ/20@632.8nm

Damage Threshold 0.5 J/cm² with 10 ns pulses@532 nm, 20Hz

Clear Aperture ≥80%

Surface Quality 10-5

Diameter Tolerance +0/-0.13mm

Thickness Tolerance ±0.25mm

Bevel Protective Bevel

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 632.8

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 632.8

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 488-515nm

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 488-515nm

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 1520-1550nm

Zerodur Laser Line Dielectric Mirrors D=25.4mm 0-45° 1520-1550nm

Zerodur Broadband Metal Laser Mirrors D=25.4mm 0-45° 266-600nm

Zerodur Broadband Metal Laser Mirrors D=25.4mm 0-45° 266-600nm

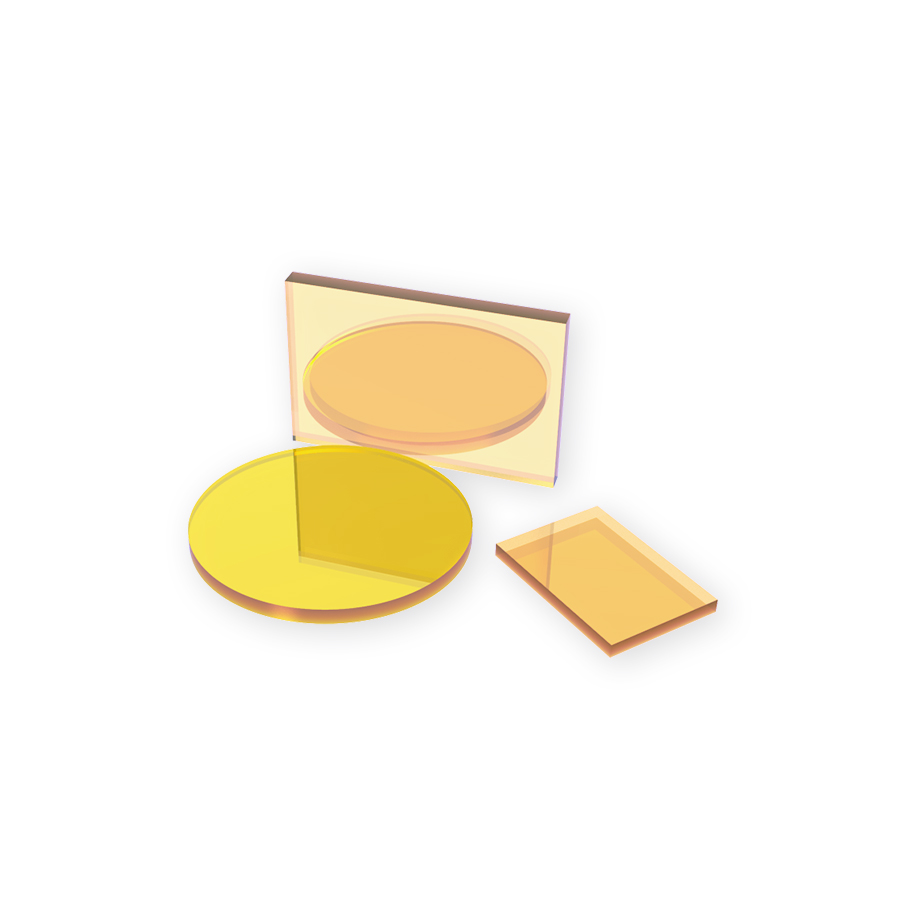

Grand Unified Opticsoffer standard Zerodur Laser Line Mirrors with angle of incidence of 0°and 45°and spectrum ranges from 266nm to 20000nm. These laser line mirrors feature wide spectral range, large angle of incidence and high reflectivity which meet the needs of various laser reflection applications. We can offer customized Zerodur laser line mirrors to suit your requirements
