Home  Products  SWIR Achromatic Waveplate  338004

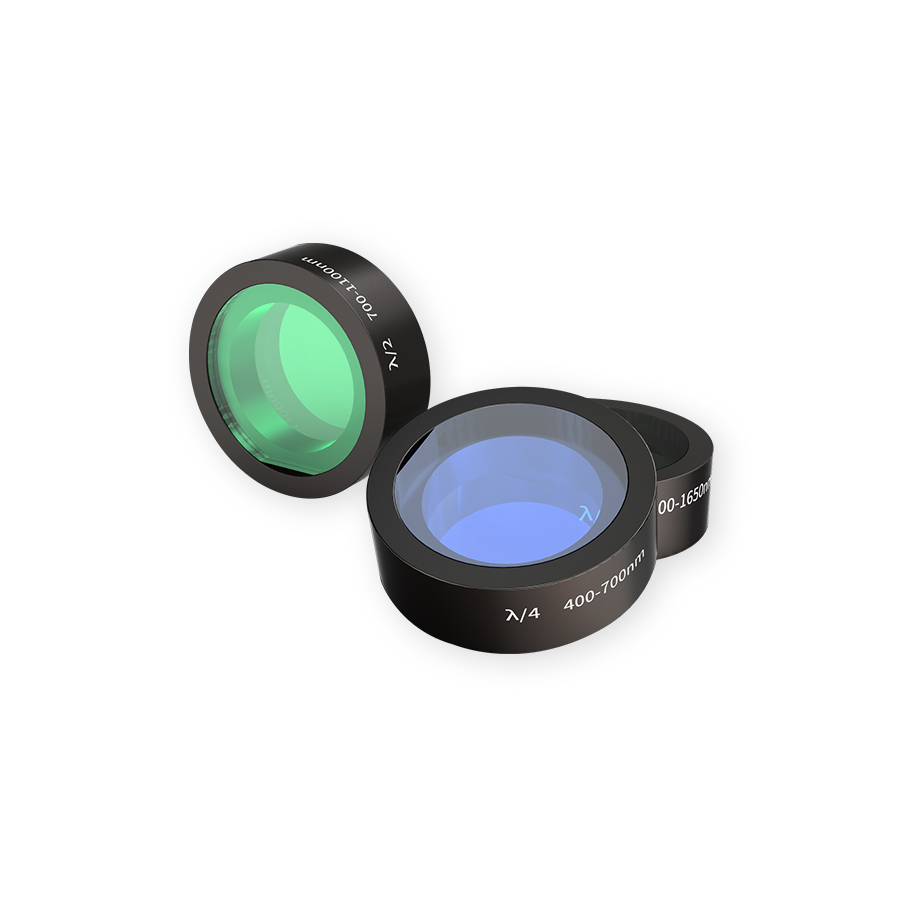

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength1100-1650nm CA=10.0mm





Share

WeChat

Scan and add Wechat

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength1100-1650nm CA=10.0mm

Price Option

Product No. 338004

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Dia Φ25.4mm

Design Wavelength 1100nm-1650nm

Retardance λ/2

Angle of Incidence 0°

Material Quartz-Crystal&MgF2

Retardance Tolerance ±λ/100

Surface Quality 40/20

Parallelism ＜10 arcsec

Diameter Tolerance +0/-0.1mm

λ/50~λ/100@550 nm-700 nm Wavefront Aberration λ/8 @632.8 nm

Clear Aperture 10.0mm

AR Coating R＜0.5%@Design Wavelength

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength400-700nm CA=10.0mm

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength400-700nm CA=10.0mm

Achromatic Waveplate λ/4 Φ25.4mm Design Wavelength400-700nm CA=10.0mm

Achromatic Waveplate λ/4 Φ25.4mm Design Wavelength400-700nm CA=10.0mm

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength700-1100nm CA=10.0mm

Achromatic Waveplate λ/2 Φ25.4mm Design Wavelength700-1100nm CA=10.0mm

Achromatic Waveplate λ/4 Φ25.4mm Design Wavelength700-1100nm CA=10.0mm

Achromatic Waveplate λ/4 Φ25.4mm Design Wavelength700-1100nm CA=10.0mm

Achromatic Waveplate is composed of birefringent crystals of two different materials. Since the dispersion of the two materials is different, a relatively uniform phase Retardance can be achieved in a wide wavelength range. The Achromatic Waveplate is also less sensitive to temperature.
