Home  Products  H-K9L Glass Dome Window  197537

Dome Window Φ75.0mm Height=36.5mm Thickness=3.0mm Uncoated H-K9L optical glass





Share

WeChat

Scan and add Wechat

Dome Window Φ75.0mm Height=36.5mm Thickness=3.0mm Uncoated H-K9L optical glass

Price Option

Product No. 197537

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia Φ75.0mm

Height 36.5mm

Coating Uncoated

Material H-K9L optical glass

Thickness 3.0mm

Surface Accuracy (Partial)ΔN＜10 @ 633nm

Surface Quality 60-40

Diameter Tolerance +0.0/-0.2mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Dome Window Φ100.0mm Height=49.0mm Thickness=4.0mm Uncoated H-K9L optical glass

Dome Window Φ100.0mm Height=49.0mm Thickness=4.0mm Uncoated H-K9L optical glass

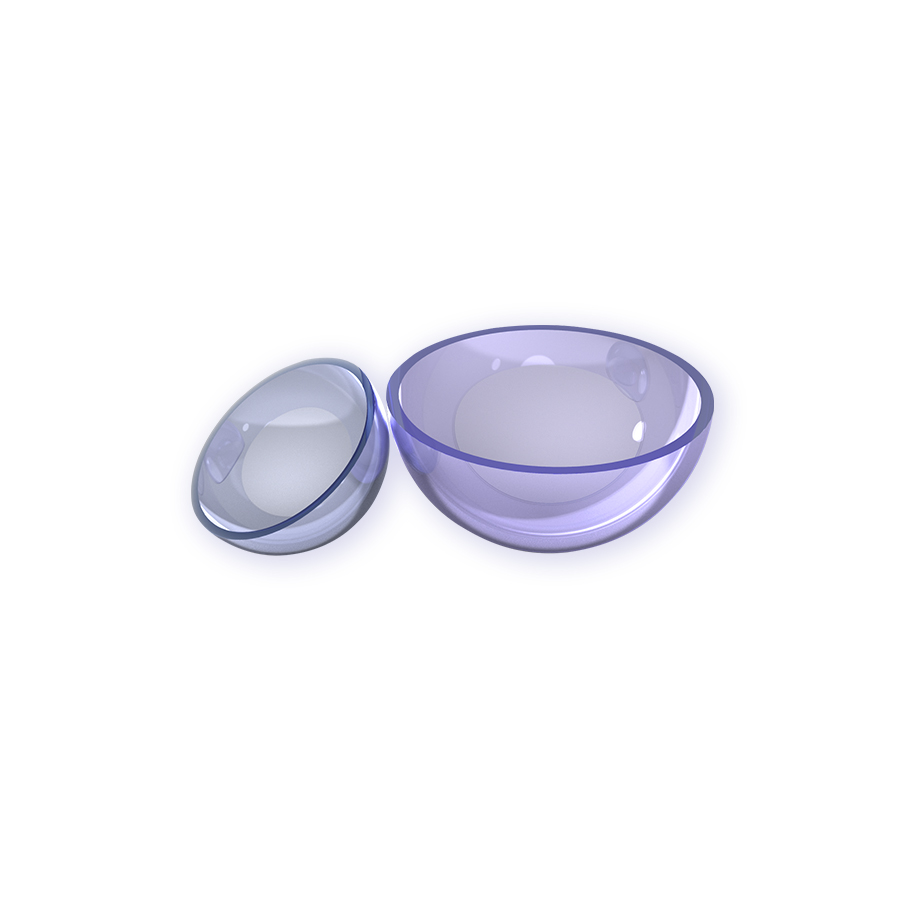

Dome Window Φ25.0mm Height=11.5mm Thickness=1.0mm Uncoated Fused Silica

Dome Window Φ25.0mm Height=11.5mm Thickness=1.0mm Uncoated Fused Silica

Dome Window Φ50.0mm Height=24.0mm Thickness=2.0mm Uncoated Fused Silica

Dome Window Φ50.0mm Height=24.0mm Thickness=2.0mm Uncoated Fused Silica

Dome Window Φ75.0mm Height=36.5mm Thickness=3.0mm Uncoated Fused Silica

Dome Window Φ75.0mm Height=36.5mm Thickness=3.0mm Uncoated Fused Silica

Dome windows are often used as wide angle protective windows for optical detectors, optical sensor and other electrical components.
