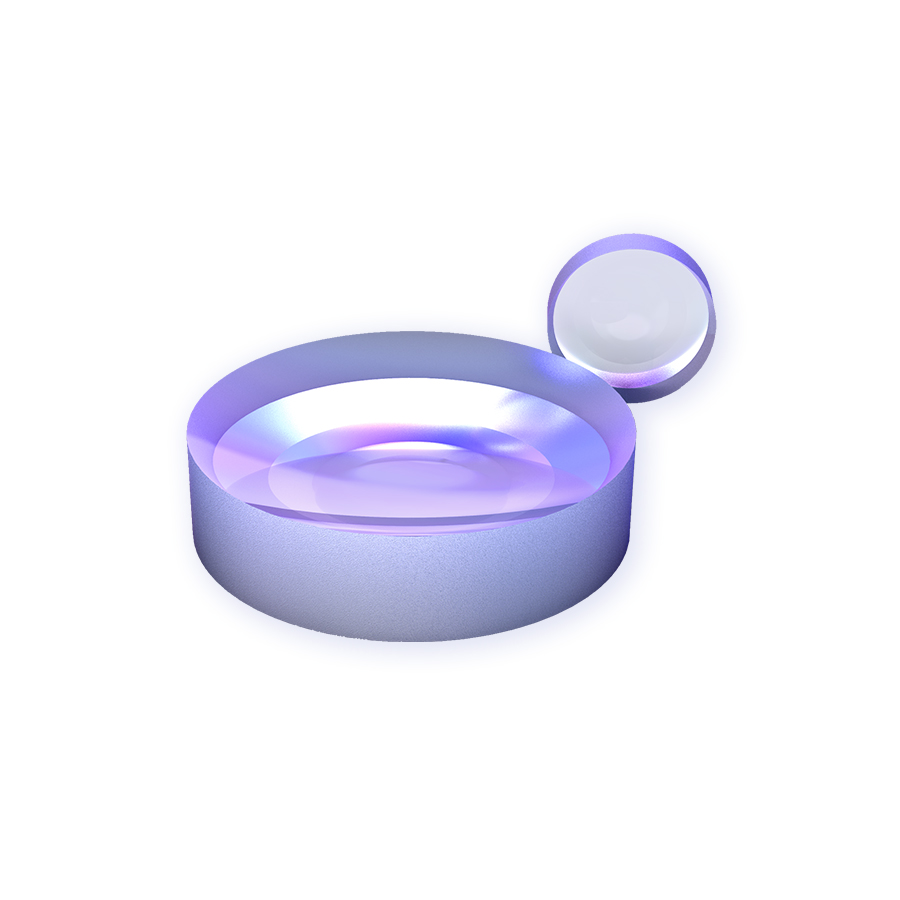

DCV D=50.00mm F=-50.00mm Uncoated H-K9L optical glass



DCV D=50.00mm F=-50.00mm Uncoated H-K9L optical glass





Share

WeChat

Scan and add Wechat

DCV D=50.00mm F=-50.00mm Uncoated H-K9L optical glass

Price Option

Product No. 130012

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 50.00mm

EFL -50.00mm

Coating Uncoated

Material H-K9L optical glass

BFL -50.99mm

R1 -52.15mm

CT 3.00mm

ET 15.77mm

Available Mount Ring 500003

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1

Center Thickness Tolerance ±0.2

Surface Accuracy λ/4 @632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 40/20-60/40

Bevel 0.2X45°

n --

DCV D=2.00mm F=-2.00mm VIS H-K9L optical glass

DCV D=2.00mm F=-2.00mm VIS H-K9L optical glass

DCV D=2.00mm F=-2.50mm VIS H-K9L optical glass

DCV D=2.00mm F=-2.50mm VIS H-K9L optical glass

DCV D=3.00mm F=-3.00mm VIS H-K9L optical glass

DCV D=3.00mm F=-3.00mm VIS H-K9L optical glass

DCV D=3.00mm F=-6.30mm VIS H-K9L optical glass

DCV D=3.00mm F=-6.30mm VIS H-K9L optical glass

Double-Concave Lenses can diverge the light, its focal length is nedtive, which is made of two concave surfaces with same radius.These lenses are ideal for the application of beam expansion, light projection or the expansion of the focal length. Grand Unified Optics offers uncoated or AR coatings Double-Concave Lenses for your appliation.
