Home  Products  UV Fused Silica Plano-Concave (PCV) Lenses  120275

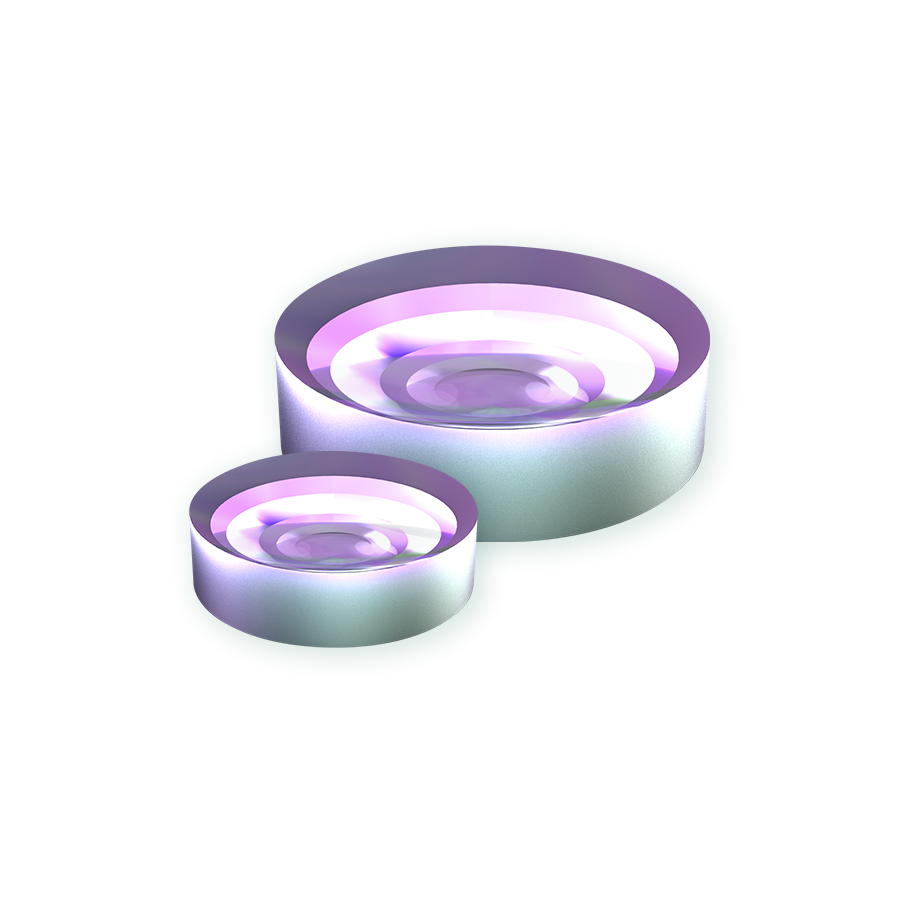

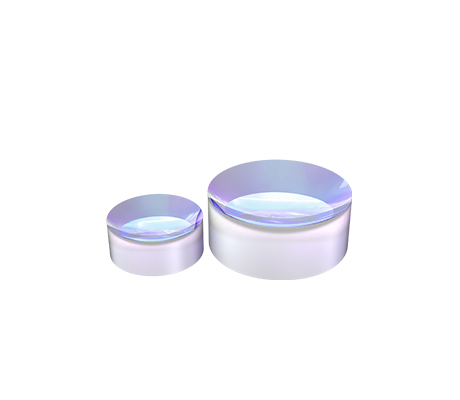

PCV D=4.00mm F=-15.00mm UV UV Fused Silica



PCV D=4.00mm F=-15.00mm UV UV Fused Silica





Share

WeChat

Scan and add Wechat

PCV D=4.00mm F=-15.00mm UV UV Fused Silica

Price Option

Product No. 120275

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 4.00mm

EFL -15.00mm

Coating AR@250~400nm

Material UV Fused Silica

BFL -16.17mm

R1 -6.88mm

CT 1.71mm

ET 2.00mm

Available Mount Ring 500035

Design Wavelength 587.6nm

Diameter Tolerance +0.0 /-0.1

Center Thickness Tolerance ±0.2

Surface Accuracy λ/4 @632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 20/10-40/20

Bevel 0.2X45°

n n=1.45848

PCV D=4.00mm F=-20.00mm UV UV Fused Silica

PCV D=4.00mm F=-20.00mm UV UV Fused Silica

PCV D=6.30mm F=-10.00mm UV UV Fused Silica

PCV D=6.30mm F=-10.00mm UV UV Fused Silica

PCV D=6.30mm F=-12.50mm UV UV Fused Silica

PCV D=6.30mm F=-12.50mm UV UV Fused Silica

PCV D=6.30mm F=-15.00mm UV UV Fused Silica

PCV D=6.30mm F=-15.00mm UV UV Fused Silica

Plano-Concave Lenses diverge light. One side is flat, the other side is concave. its focal length is negative. Plano-Concave Lenses are ideal for beam expansion applications, light projection, or focal length of expansion. Grand Unified Optics offers uncoated and a wide variety of anti-reflection coated plano concave Lenses suitable for your application.
