Product characteristics

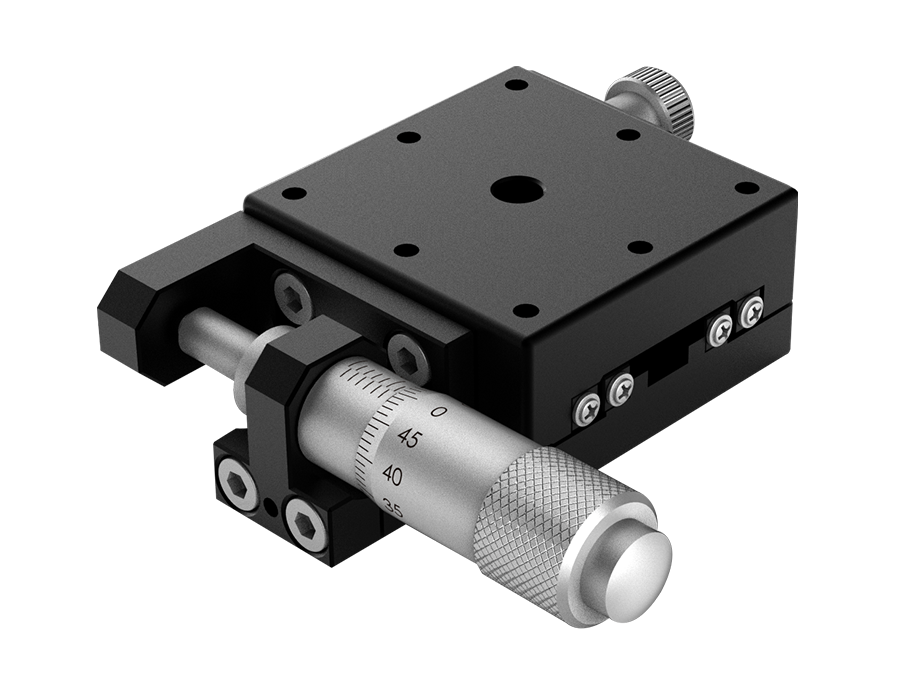

1. Single Linear (X)-Axis
2. Stage Size : 40、60、80 (mm)
3. Travel : ±6.5 ~±12.5 (mm)
4. Bearing Type : V-Grooved and Crossed-Roller Bearings for High Load Capacity and Low Angular Deviation
5. Integrated Micrometer Mounts, Support precision motion and high load capacities.
6. Material: Aluminium alloy
Min Micrometer Graduations
Straight Line Accuracy
