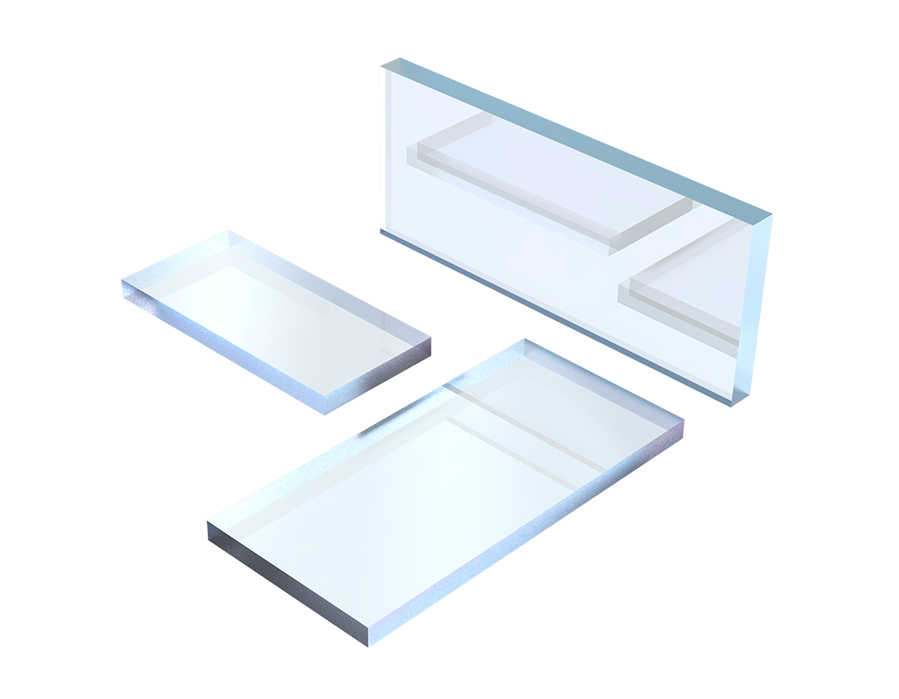

High Energy Nd:YAG Polarizing Plate
GU Optics offer High Energy Nd: Yag Polarizing Plates , which are designed by Brewster angle to achieve excellent optical performance and feature high laser damage threshold, high transmission, high reflection, high extinction ratio. Polarizing plates are used in fields such as laser, laser systems, Research& Development. We can offer customized polarizing plates for you according to your application.
High Energy Nd:YAG Polarizing Plate
Material H-K9L
Reflection Rs≥99.8%
Transmission Tp≥98%
Reflection Deviation 56°±5′
Transmission Deviation <5′

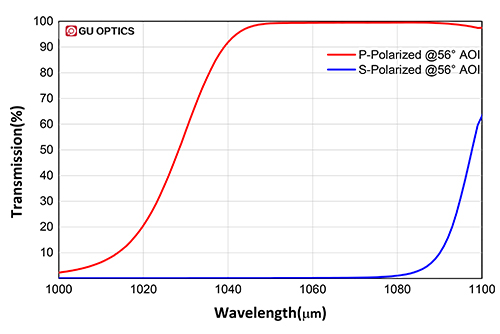

Extinction Ratio Tp:Ts>500:1
Size Tolerance +0.0/-0.2
Transmitted Wavefront Error <λ/4@633nm Within CA

Dimension

Wavelength

Angle of Incidence

Pro No.
Parameter
Dimension
Wavelength
Angle of Incidence
Damage Threshold
Delivery time
Compare
Price
Purchase
27×13×3.0mm
1064nm
56±2°
20J/cm²@1064nm,10ns,10Hz
Consult
Consult
27×13×3.0mm
1064nm
56±2°
15J/cm²@1064nm,10ns,10Hz
Consult
Consult
28.6×14.3×3.2mm
1064nm
57±2°
20J/cm²@1064nm,10ns,10Hz
Consult
Consult
28.6×14.3×3.2mm
1064nm
57±2°
15J/cm²@1064nm,10ns,10Hz
Consult
Consult
