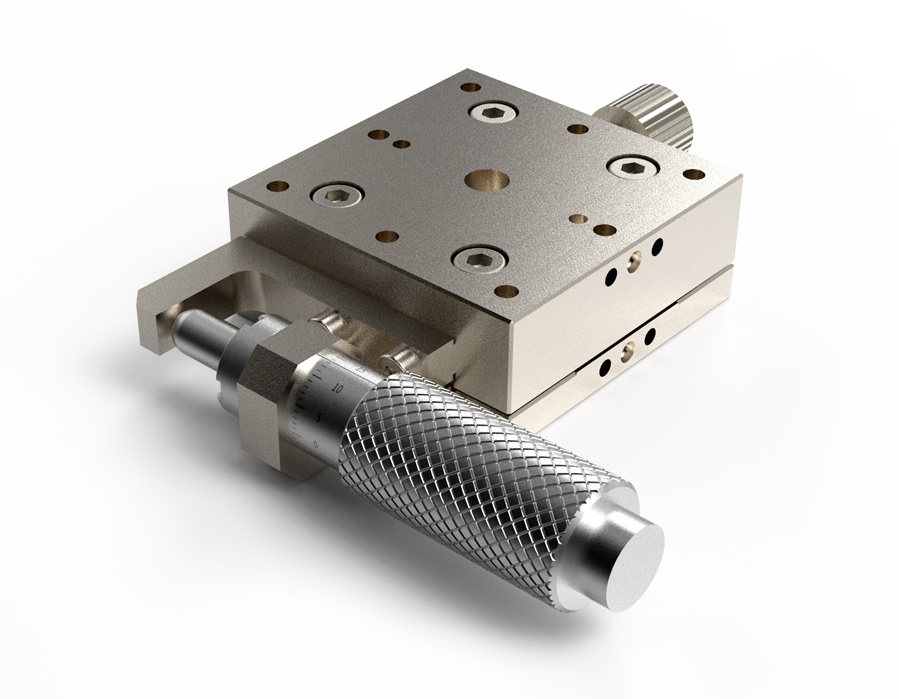

Precision Stainless Stages

Product characteristics
1. Single Linear (X)-Axis
2. Stage Size : 40、60、80 (mm)
3. Travel : ±3.2~±12.5 (mm)
4. Guide System: Their rigid all-steel construction and heavy-duty cross-roller bearings provide uniform performance over the entire range of motion.
5. Integrated Micrometer Mounts, Support precision motion and high load capacities.
6. Material: Stainless Construction, corrosion and heat resistance.
Precision Stainless Stages

Min Micrometer Graduations

Straight Line Accuracy

Pro No.
Parameter
Platform Size
Travel
Min Micrometer Graduations
Straight Line Accuracy
Delivery time
Compare
Price
Purchase
40x40mm
±6.5mm
10μm
3μm
In stock
$211.67
40x40mm
±6.5mm
10μm
3μm
In stock
$211.67
60x60mm
±6.5mm
10μm
3μm
In stock
$230.00
65x65mm
±6.5mm
10μm
3μm
Consult
$230.00
80x80mm
±12.5mm
10μm
3μm
In stock
$271.67
25x25mm
6mm
Consult
Consult
100x100mm
25mm
Consult
Consult
