85mm 4/3" 10M Fixed Focal Length Lens

Price Option

Product No. 600035

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 85mm

F/# 2

Max. sensor size 4/3"

Mount C

Resolution 10MP

Working Distance 1.2m～∞

Filter Thread M77.0×0.75mm

FOV 15.41°×12.09°×9.28°

Distrotion 0.04%@y=11.5mm

Weight 687g

No.	Item		Specifications
1	Max. sensor size		4/3"(23mm）
2	Focal Length		85mm
3	Mount		C-Mount
4	F/#		F2.0-F22
5	Working Distance		1.2m~∞
6	FOV(Diagonal x H xV)	4/3"	15.41°×12.09°×9.28°
		1"	10.75°×8.61°×6.46°
		1/2"	5.39°×4.31°×3.24°
		1/3"	4.04°×3.24°×2.43°
7	Object Size (at the minimum focus distance)	4/3"	309.7×241.98×185.43mm
		1"	215.23×171.94×128.82mm
		1/2"	107.31×85.82×64.35mm
		1/3"	80.45×64.35×48.26mm
8	BFL（in air）		24.5mm
9	Operation	Focus	Manual
9	Operation	Aperture	Manual
10	Distortion	4/3"	0.04%@y=11.5mm
		1"	0.05%@y=8.0mm
		1/2"	0.02%@y=4.0mm
		1/3"	0.01%@y=3.0mm
11	Filter thread		M77.0×0.75mm

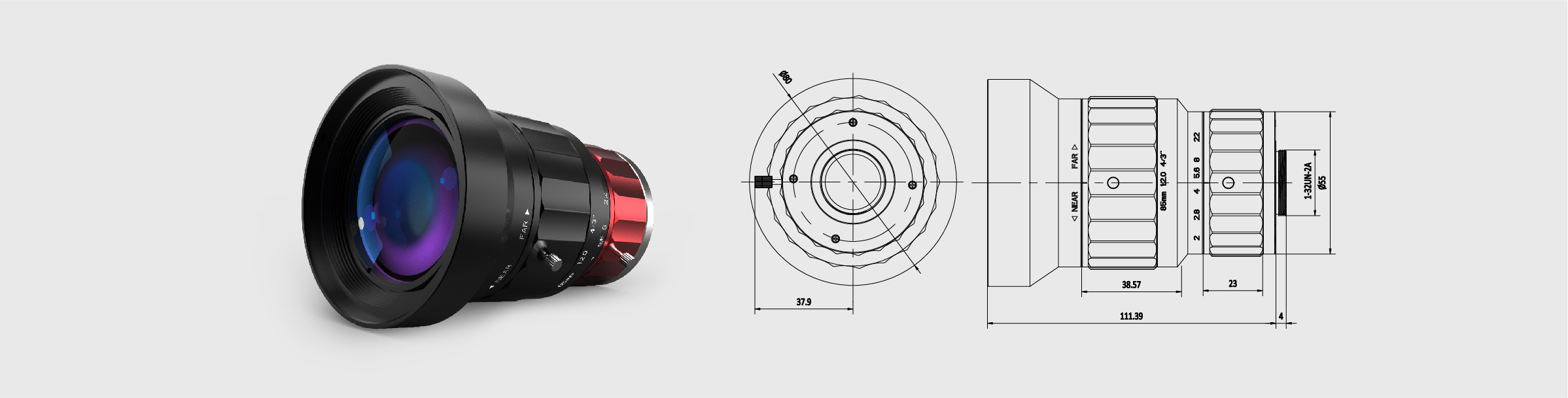

12	Lens Size(W x L)		80×115.39mm
13	Weight		687g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		115.09mm
16	Diameter of entrance pupil		42.49mm
17	Distance of exit pupil		-60.98mm
18	Diameter of exit pupil		30.37mm
19	Total optical length		113.90mm
20	Magnification		-0.0746

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
1200mm	-0.07463	2.9227	2.9370
1250mm	-0.07150	3.1710	3.1872
1300mm	-0.06861	3.4294	3.4476
1350mm	-0.06595	3.6979	3.7183
1400mm	-0.06348	3.9765	3.9992
1450mm	-0.06120	4.2652	4.2904
1500mm	-0.05907	4.5639	4.5919
1550mm	-0.05709	4.8728	4.9036
1600mm	-0.05523	5.1917	5.2256
1650mm	-0.05349	5.5207	5.5579

Curve Download

12mm 4/3" 10M Fixed Focal Length Lens

16mm 4/3" 10M Fixed Focal Length Lens

8.5mm 4/3" 10M Fixed Focal Length Lens No filter thread

8.5mm 4/3" 10M Fixed Focal Length Lens

GA 4/3" 10M FA lens is specially designed for 4/3" imaging sensors. Standard c-mount design, can matching most of c-mount cameras; The maximum focal length up to 85mm, imaging diameter reach to 23mm, it has great advantages for large imaging applications.

Product characteristics
1. 10 Mega pixels, 4/3" imaging Format，150lp/mm@±8.8mm，100lp/mm@±11.5mm;
2. Full focal length covers 8-85 mm;
3. Max image diameter up to23mm, compatible area Camera and Line scan camera;
4. Standard C-mount design, matching C-mount industrial cameras.
