12mm 4/3" 10M Fixed Focal Length Lens
Share
WeChat
Scan and add Wechat

12mm 4/3" 10M Fixed Focal Length Lens

Price Option
 € 213.13 (EUR) ￡181.55 (GBP) ￥1250.00 (RMB)

Product No. 600016

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 12mm
F/# 2
Max. sensor size 4/3"
Mount C
Resolution 10MP
Working Distance 0.15m～∞
Filter Thread M77.0X0.75mm
FOV 89.0°×75.5°×61.1°
Distrotion -2.40%@y=11.5mm
Weight 447g
  No. Item Specifications
1 Max. sensor size 4/3"(23mm）
2 Focal Length 12mm
3 Mount C-Mount
4 F/# F2.0-F22
5 Working Distance 0.15m～∞
6

FOV

(Diagonal x H xV)

 4/3" 89.0°×75.5°×61.1°
1" 68.9°×57.3°×44.2°
1/2" 37.3°×30.1°×22.7°
1/3" 28.3°×22.7°×17.1°
7 Object Size
(at the minimum focus distance)		 4/3" 319.0×262.6×204.3mm
1" 235.5×189.9×143.2mm
1/2" 119.6×95.8×72.0mm
1/3" 89.9×72.0×54.0mm
8 BFL（in air） 18.93mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 4/3" -2.40%@y=11.5mm
1" -1.78%@y=8.0mm
1/2" -1.04%@y=4.0mm
1/3" -0.62%@y=3.0mm
11 Filter thread M77.0×0.75mm

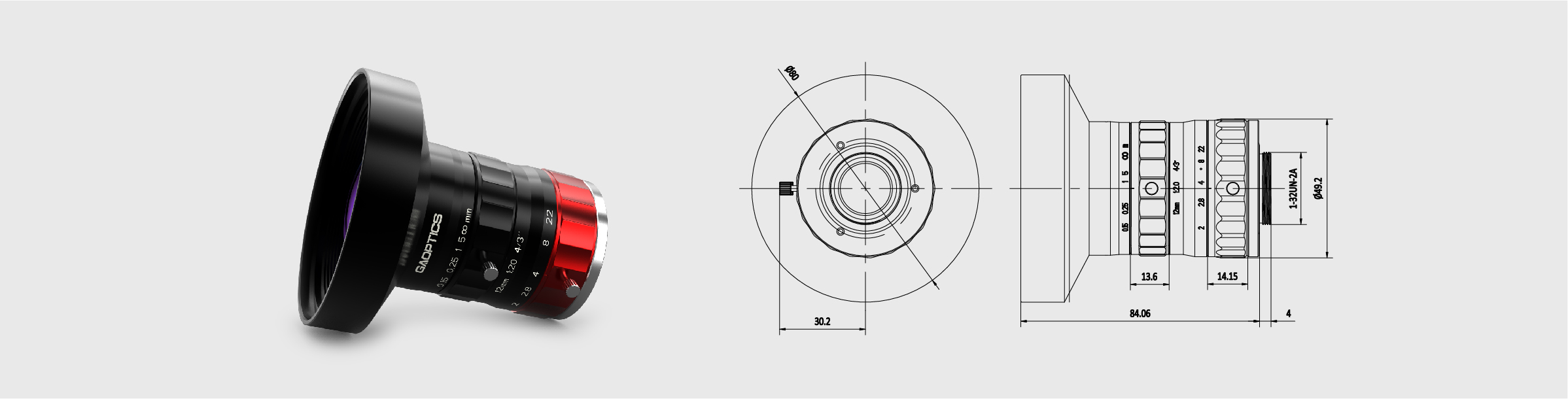

12 Lens Size(W x L) 80×88.06mm
13 Weight 447g
14 Work Temperature -10℃～+50℃
15 Distance of entrance pupil 24.00mm
16 Diameter of entrance pupil 6.00mm
17 Distance of exit pupil -53.51mm
18 Diameter of exit pupil 26.76mm
19 Total optical length 95.34mm
20 Magnification -0.0692

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
150mm -0.06917 2.2798 2.3513
200mm -0.05367 4.0325 4.2020
250mm -0.04385 6.2692 6.6002
300mm -0.03701 8.9826 9.5548
350mm -0.03210 12.1660 13.0750
400mm -0.02831 15.8110 17.1690
450mm -0.02532 19.9130 21.8460
500mm -0.02290 24.4630 27.1170
550mm -0.02090 29.4570 32.9900
600mm -0.01923 34.8860 39.4760
Curve Download

16mm 4/3" 10M Fixed Focal Length Lens

25mm 4/3" 10M Fixed Focal Length Lens

35mm 4/3" 10M Fixed Focal Length Lens

50mm 4/3" 10M Fixed Focal Length Lens
GA 4/3" 10M FA lens is specially designed for 4/3" imaging sensors. Standard c-mount design, can matching most of c-mount cameras; The maximum focal length up to 85mm, imaging diameter reach to 23mm, it has great advantages for large imaging applications.

Product characteristics
1. 10 Mega pixels, 4/3" imaging Format，150lp/mm@±8.8mm，100lp/mm@±11.5mm;
2. Full focal length covers 8-85 mm;
3. Max image diameter up to23mm, compatible area Camera and Line scan camera;
4. Standard C-mount design, matching C-mount industrial cameras.
