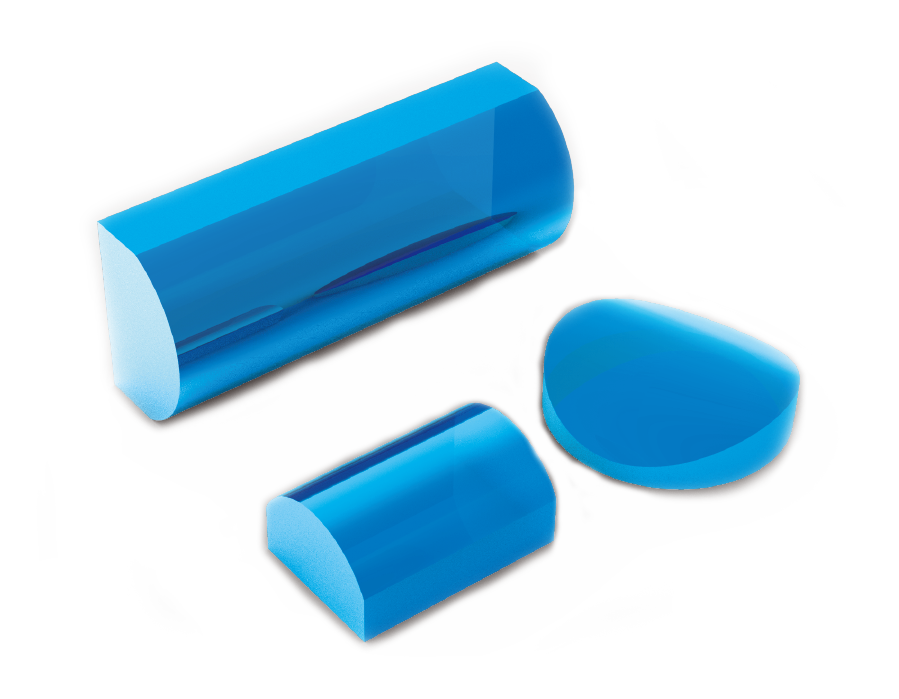

Calcium Fluoride（CaF2）Plano-Convex (PCX) Cylinder Lenses
Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.
- Material CaF2 Single Crystal
- Design Wavelength 4μm
- Dimensional Tolerance +0/-0.2mm
- Center Thickness Tolerance ±0.2mm
- Focal Length Tolerance（EFL） ±2%
- Centering Tolerance 3~5 arcmin
- Surface Quality 40-20
- Bevel 0.2mmX45°
- Coating As product list
Dia
Coating
Pro No.
Parameter
Dia
EFL
Coating
CT
Delivery time
Compare
Price
Purchase
