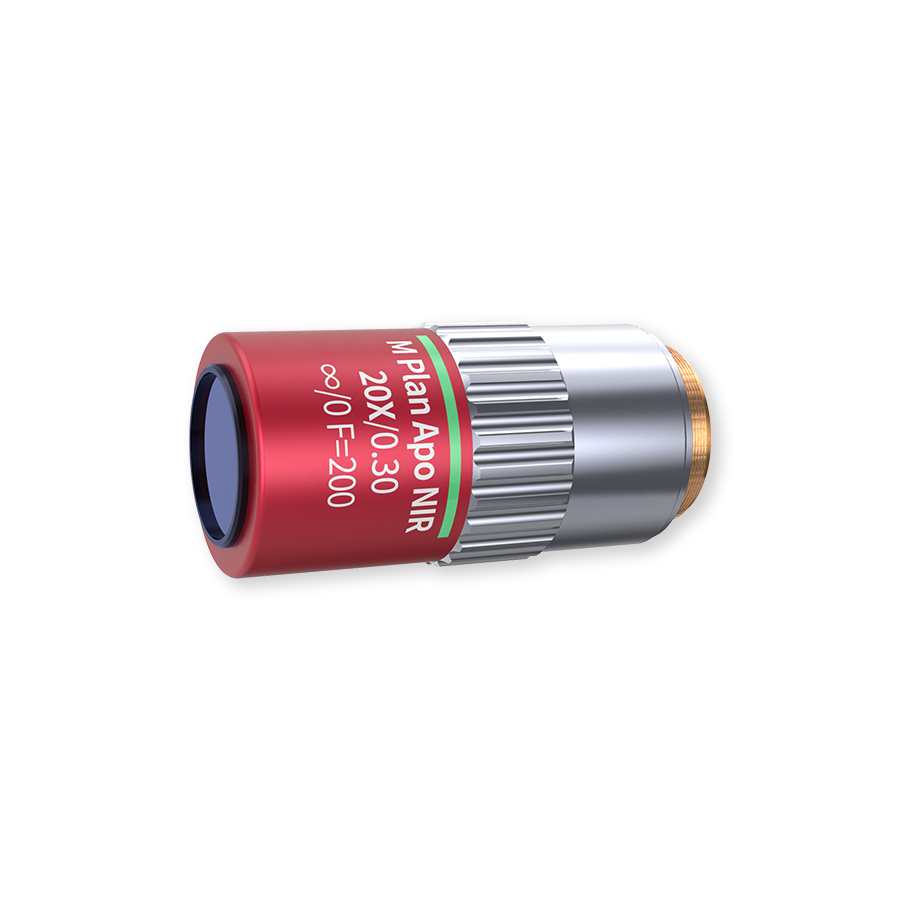

20X M PLAN APO NIR Infinity Corrected Ultra-Long Working Distances Objective





Share

WeChat

Scan and add Wechat

20X M PLAN APO NIR Infinity Corrected Ultra-Long Working Distances Objective

Price Option

Product No. 690020

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Specification Data curve Related Products Description

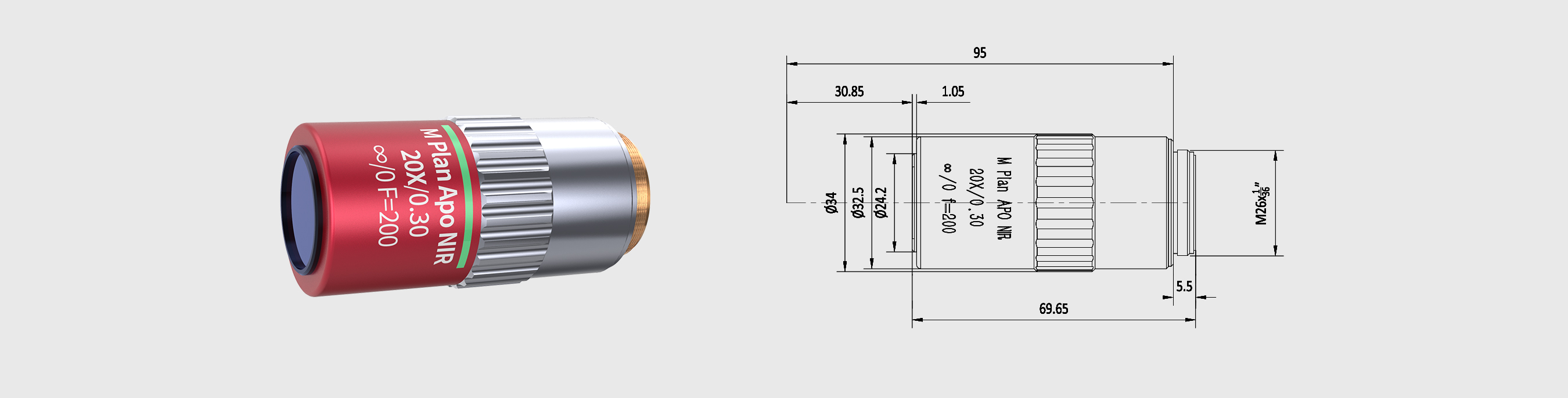

Magnification 20X

NA 0.3

Working Distance 30.85mm

Focal Length 10mm

Wavelength NIR

Depth of Focus 3.5μm

Resolution 1μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 34mm

Length 69.65mm

Thread M26*0.706

Type M Plan APO

Curve Download
