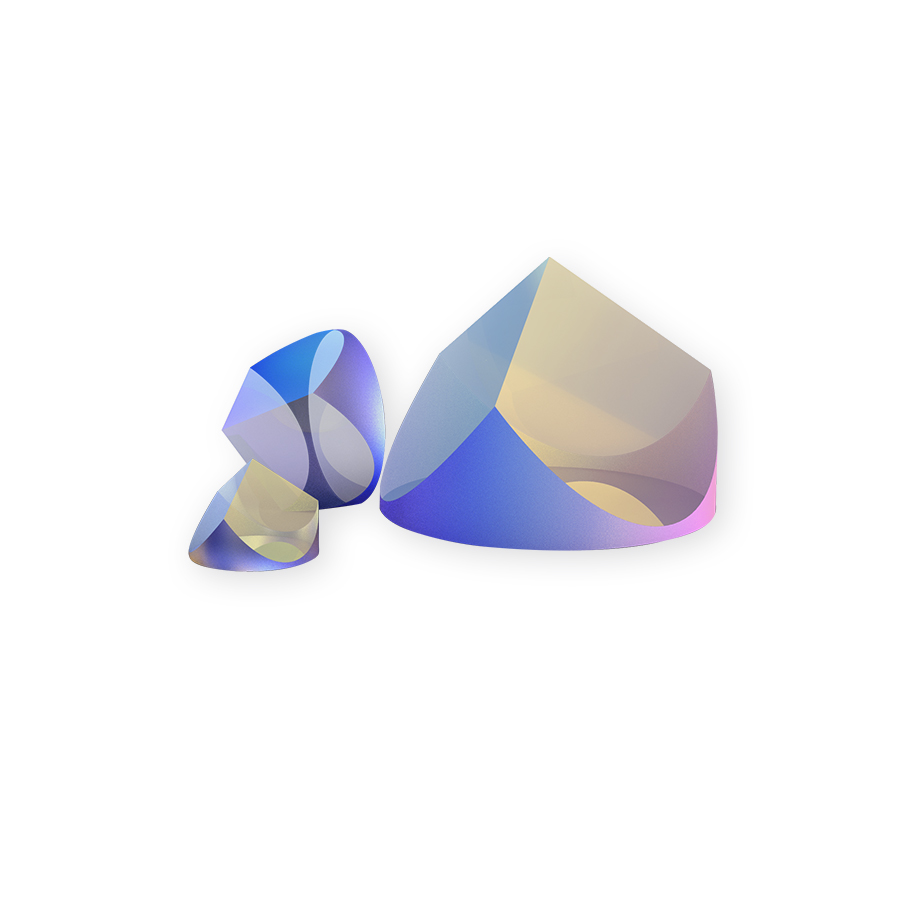

Corner Prism Φ72.5mm H=52.35mm UnSilver Coated H-K9L Optical Glass
Price Option
Product No. 371510
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Beam Deviation <10”

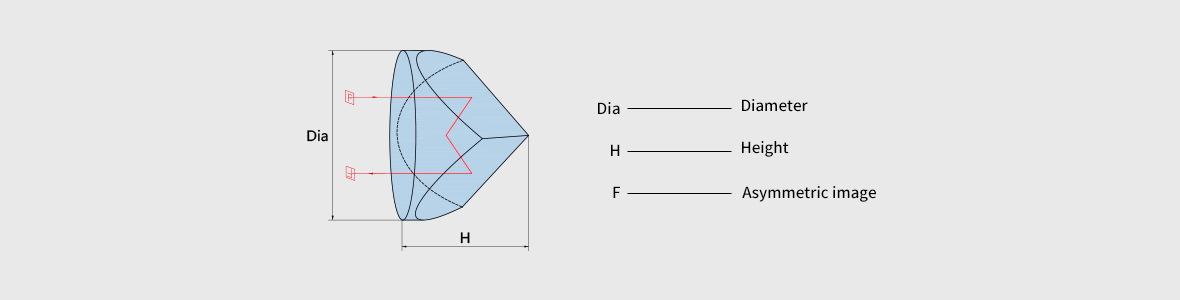

- Dia Φ72.5mm
- H 52.35mm
- Reflected Surface Uncoated
- Incident Surface Uncoated
- Material H-K9L Optical Glass
- Diameter (D) Tolerance +0.0/-0.1mm
- Height(H)Tolerance ±0.2mm
- Surface Accuracy λ/10 @ 632.8nm
- Surface Quality 40/20-60/40
- Bevel <0.25mmX45°
CoatedRetroreflectors are ideal for alignment to return incident light back to the light source.
